HW casing

HW casing, HW wireline casing,HW flush joint casing

HW casing is intended for single use or situations where the HW casing is left in the hole. The HW casing is made from standard tubing and with the HW casing thread form. The HW casing thread is a straight thread (4 threads per inch). This HW casing is universal in design and can be used in any drilling conditions where threaded HW casing is required to be left in the ground.

HW casing tubing

Parallel wall tubing compatible with HQ wireline coring system in hole tools

Tubing properties meet the industry standard

HW casing tubing thread

Longer threads (4 threads per inch) provide strength in driving and jarring

Standard HW casing thread provides sufficient strength for most drilling conditions

HW casing tubing heat treatment(Option)

Provides higher material strength

Whole casing Heat treated significantly increases casing life

HW casing tubing case hardening(Option)

HW casing Pin thread crest is hardened to nominal 50-55 HRC to eliminate damagingadhesion wear

Eliminates the transfer of wear material back and forth as seen between threads of equal

hardness, leading to large scale galling and joint seizing

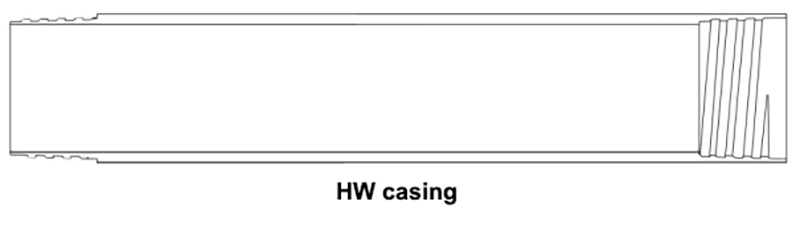

HW casing overview

HW casing overview.jpg

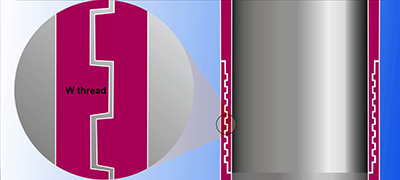

HW casing thread profile

W thread.jpg

HW wireline casing parameters

SIZE

OUTER DIAMETER

(mm)

INNER DIAMETER

(mm)

WEIGHT

(kg/3m)

THREAD PITCH

(mm)

PIN LENGTH

(mm)

HW

114.3

101.6

52.2

6.4

76.2

HW wireline casing bundle specifications

3.0 m casing bundle (7 pcs)

Approx Dimensions (L x W x H)(mm)

3200 x 400 x 300

Approx Volume(m³)

0.40

Approx Gross Weight(kg)

375

HW wireline casing container shipments

20 ft container

Approx load of 3.0 m rods 24 bundles (168 pcs)

40 ft container

Approx load of 3.0 m rods 54 bundles (378 pcs)
